In addition to RADIUS and REST, subscriber data can be retrieved from a number of supported billing systems.

Billing integrations support only IPv4 addresses, unless otherwise stated.

‍

Aradial

‍

Aradial uses RADIUS. See RADIUS Interface chapter.

‍

Azotel

‍

The BQN retrieves the customer bucket data and gets from it the speed limits to apply (uploadrate and downloadrate).

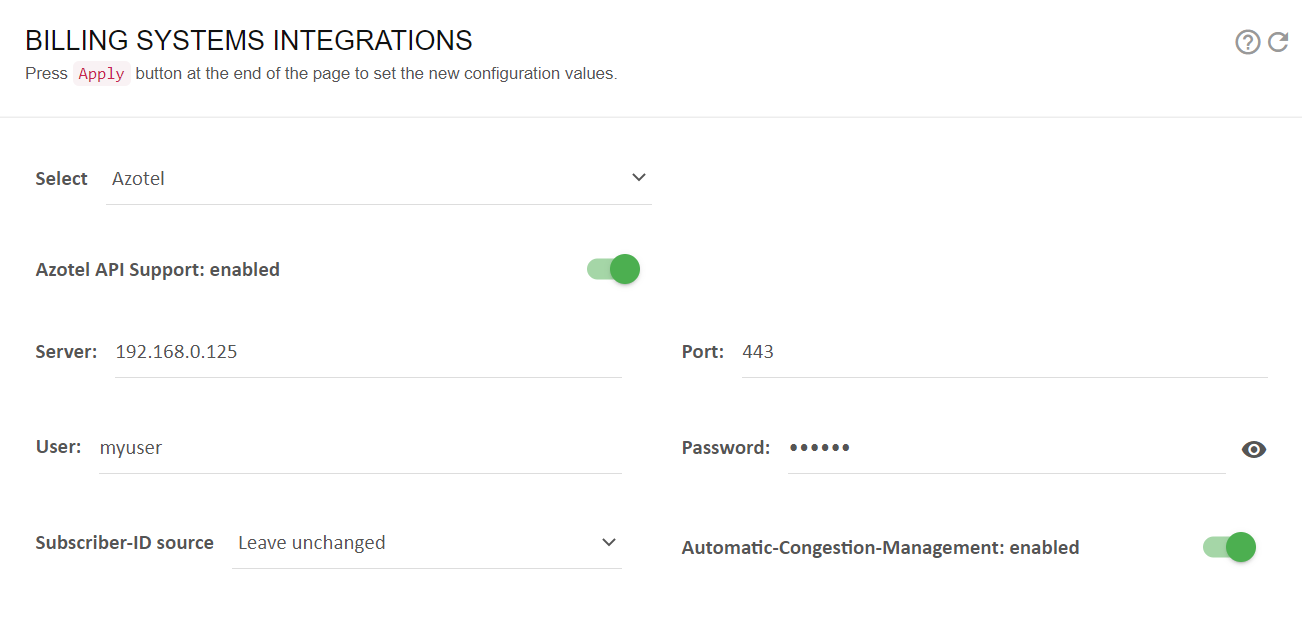

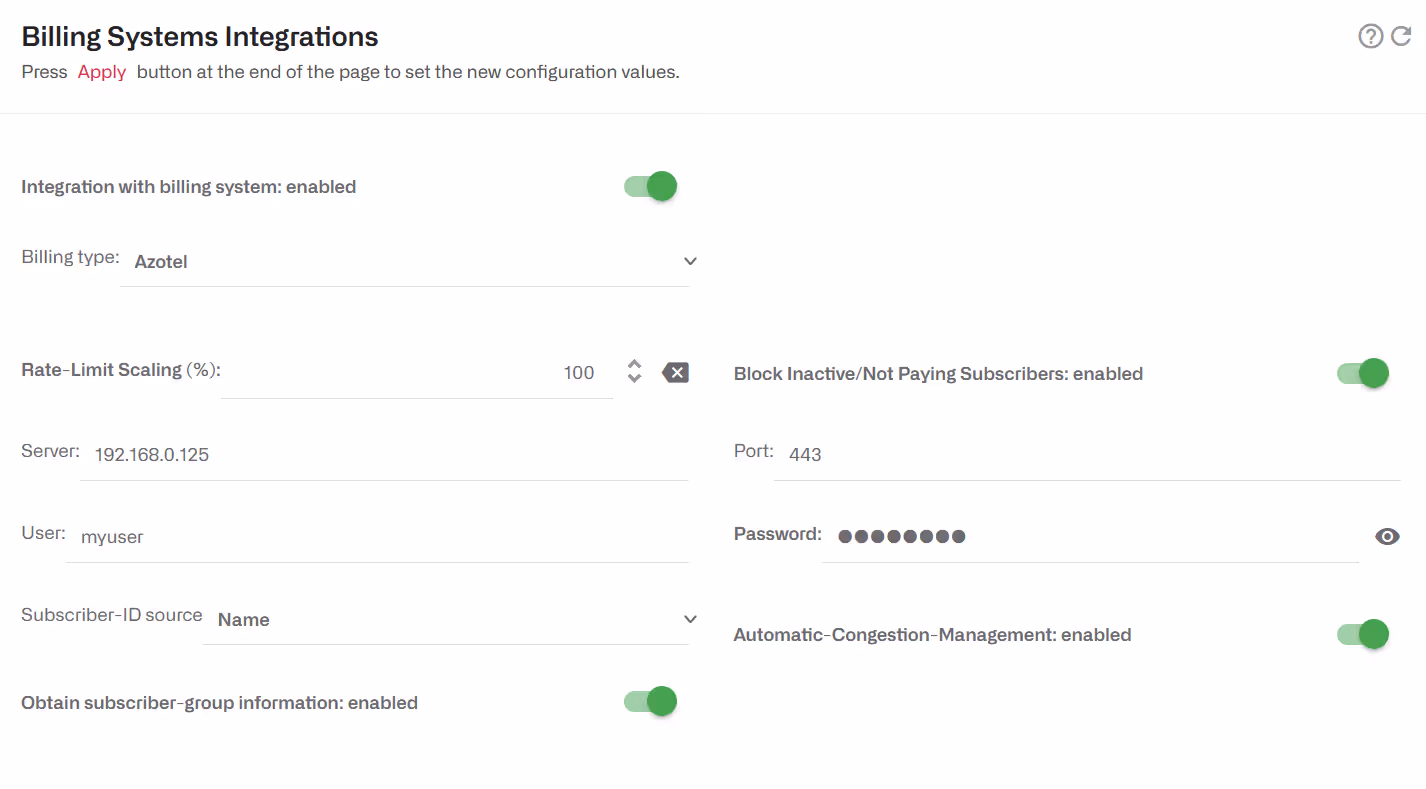

To activate Azotel, in the BQN GUI go to Configuration->RADIUS/REST/Billing->Billing Systems, select Azotel and enable the switch.

A user and password will also be needed for REST/JSON access to Azotel. That user/password must be created in the Azotel system with allowed access from the BQN IP address. See Azotel documentation here.

The BQN will use its management address for Azotel queries, but bear in mind that if the BQN reaches Azotel over the Internet, Azotel will see a public IP address and this is the one that will need authorization by the Azotel system.

In the BQN GUI, configure also the Azotel system IP address or server name and port number (443 by default).

Azotel customers in a status other than “current” will be blocked (they are regarded as lacking a valid subscription). You can change this behaviour to non-blocking disabling the switch Block Inactive/Not Paying Subscribers.

Policy rates are taken from customer’s bucket fields upload rate and download rate.

With subscriber group information enabled, and if the information is available in Azotel database, the nickname of the parent of the customer CPE (e.g. an AP) will be used as a subscriber group, prefixed with “L1-“. Also, the site name where the parent is located will be a subscriber group, with “L2-“ prefix. So there will be two levels: a first level made up of AP subscriber groups (L1) and a second one  with sites (L2), that can contain one or more APs.

‍

Gaiia

‍

The BQN retrieves the speed limits to apply from products with type INTERNET_PLAN. Those products have a downloadSpeedInKbps and uploadSpeedInKbps fields as part oftheir rawSpecificationValue,

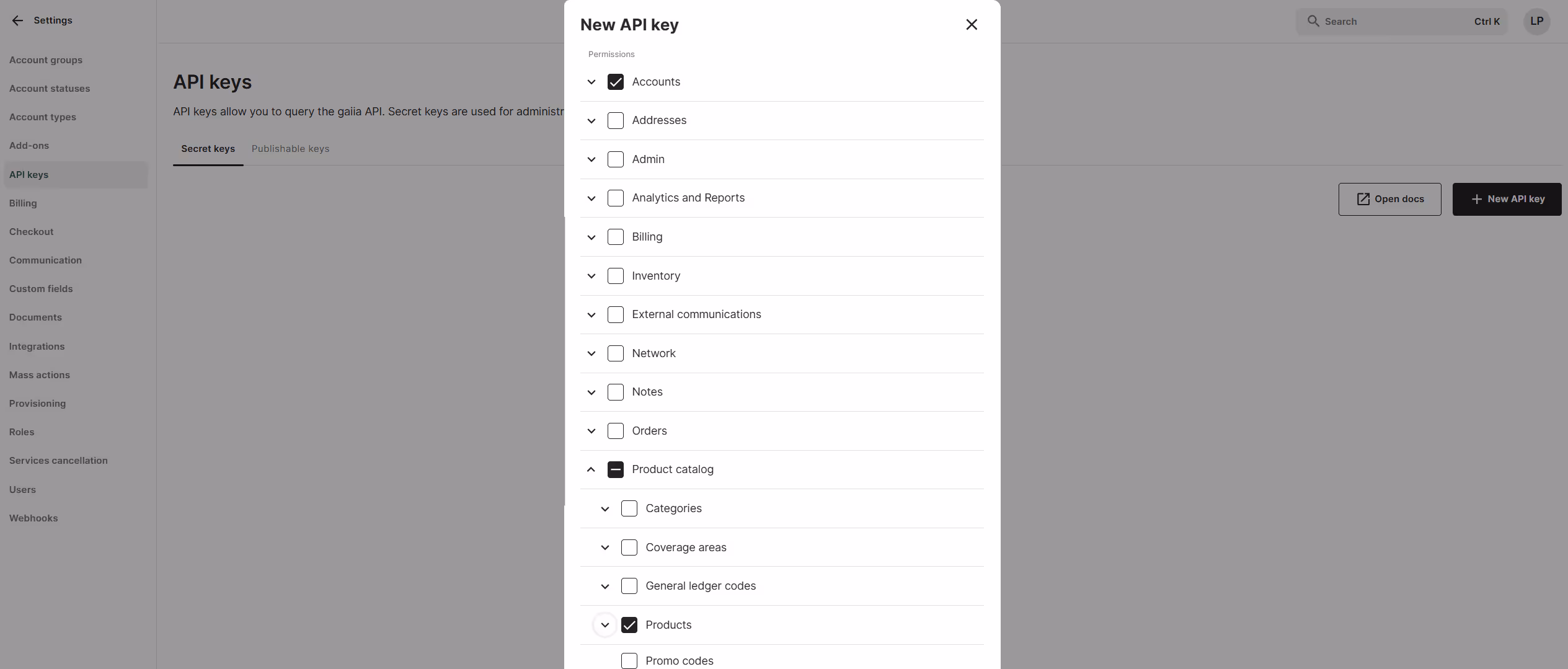

A REST API key will be needed in Gaiia. In Gaiia, go to Settings->API keys, click New Api key and select permits for Accounts and Product access.

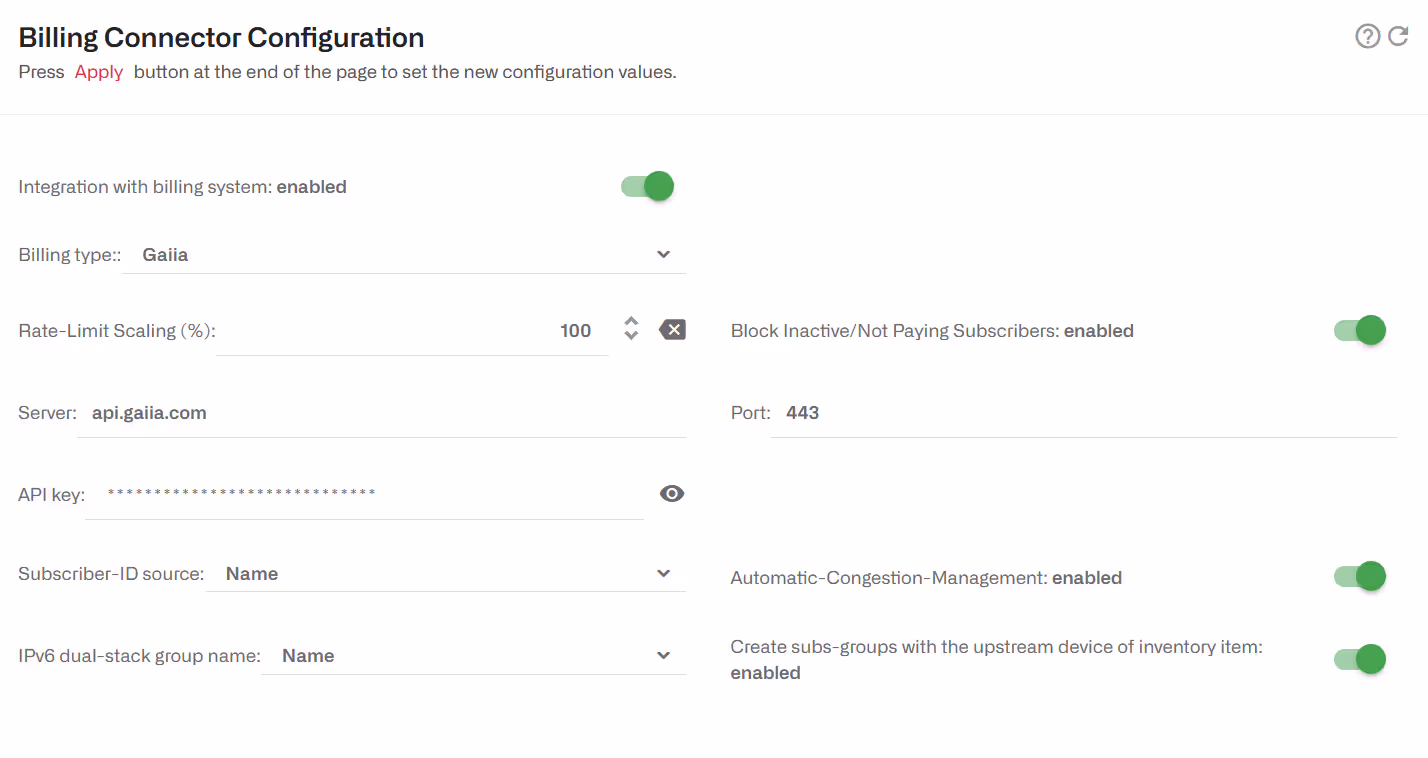

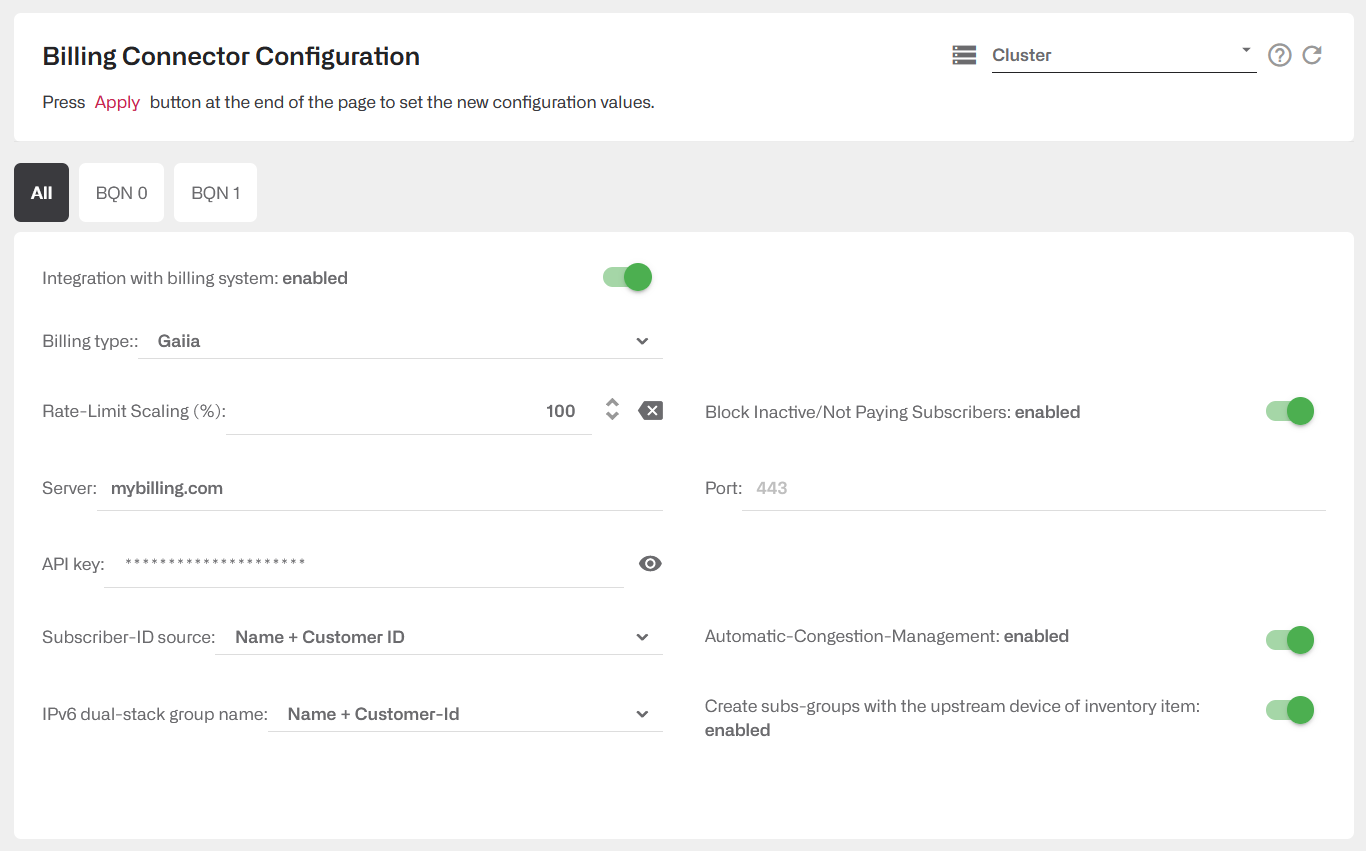

To activate Gaiia, go to Configuration->RADIUS/REST/Billing->Billing Systems, select Gaiia and enable the switch.

Provide also Gaiia server name and port number (443 by default).

Gaiia accounts in status of type INACTIVE or SUSPENDED will be blocked. You can change this behaviour to non-blocking disabling the switch Block Inactive/Not Paying Subscribers.

The following fields in Gaiia billing can be used as sourceof the subscriber ID:

• Customer-ID:account readableId field.
• Name: accountprimaryContact  firstName +lastName

Policy rate is taken from the latest product name found in the account billingSubscriptions field.

 Subscriber groups can be generated based on the account inventoryItem. If the item has an upstreamDevice with an assignee, a group will be created named with a “L1-“ prefix and the assignee name. Generation of these groups is disabled by default, to enable it, select the switch Create subs-groupswith the upstream device of inventory item.

‍

The Gaiia integration is prepared to support IPv4/IPv6 dual stack groups, once that information is available in Gaiia.

‍

Gestfy

‍

Gestfy uses BQN REST API.  See  REST API chapter.

‍

ISPCube

‍

ISPCube uses BQN REST API.  See REST API chapter.

‍

See here the configuration instructions on the ISPCube billing side (go to Bequant tab at the bottom of the page).

‍

ISPSolution

‍

ISPSolution uses BQN REST API.  See REST API chapter.

‍

IXC

‍

There is an open source plug-in available in github. Supported by the community (no official support). It uses BQN REST API chapter. Follow the README instructions in the repository.

‍

Microwisp

‍

Microwip uses RADIUS.  See RADIUS Interface chapter.

‍

Powercode

‍

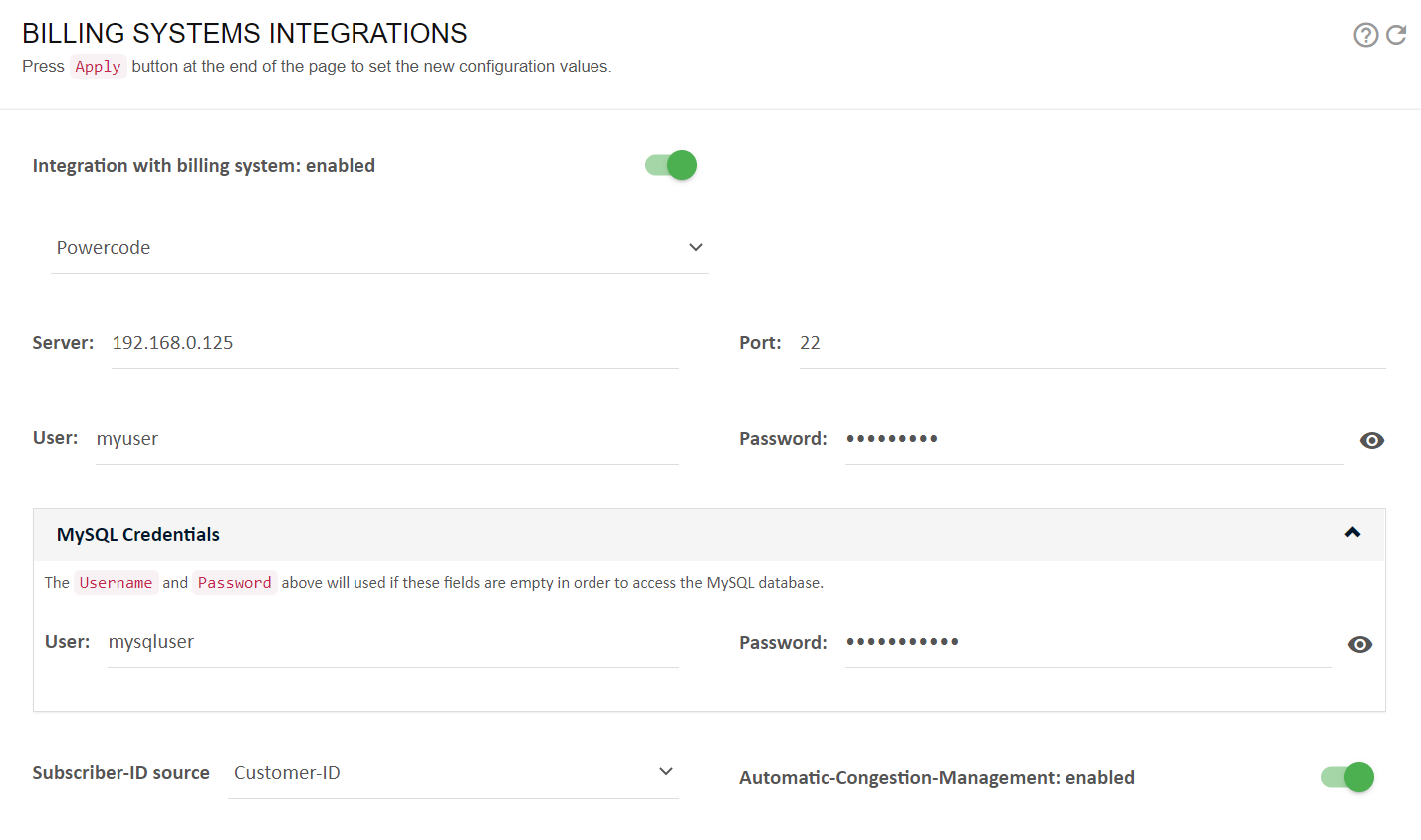

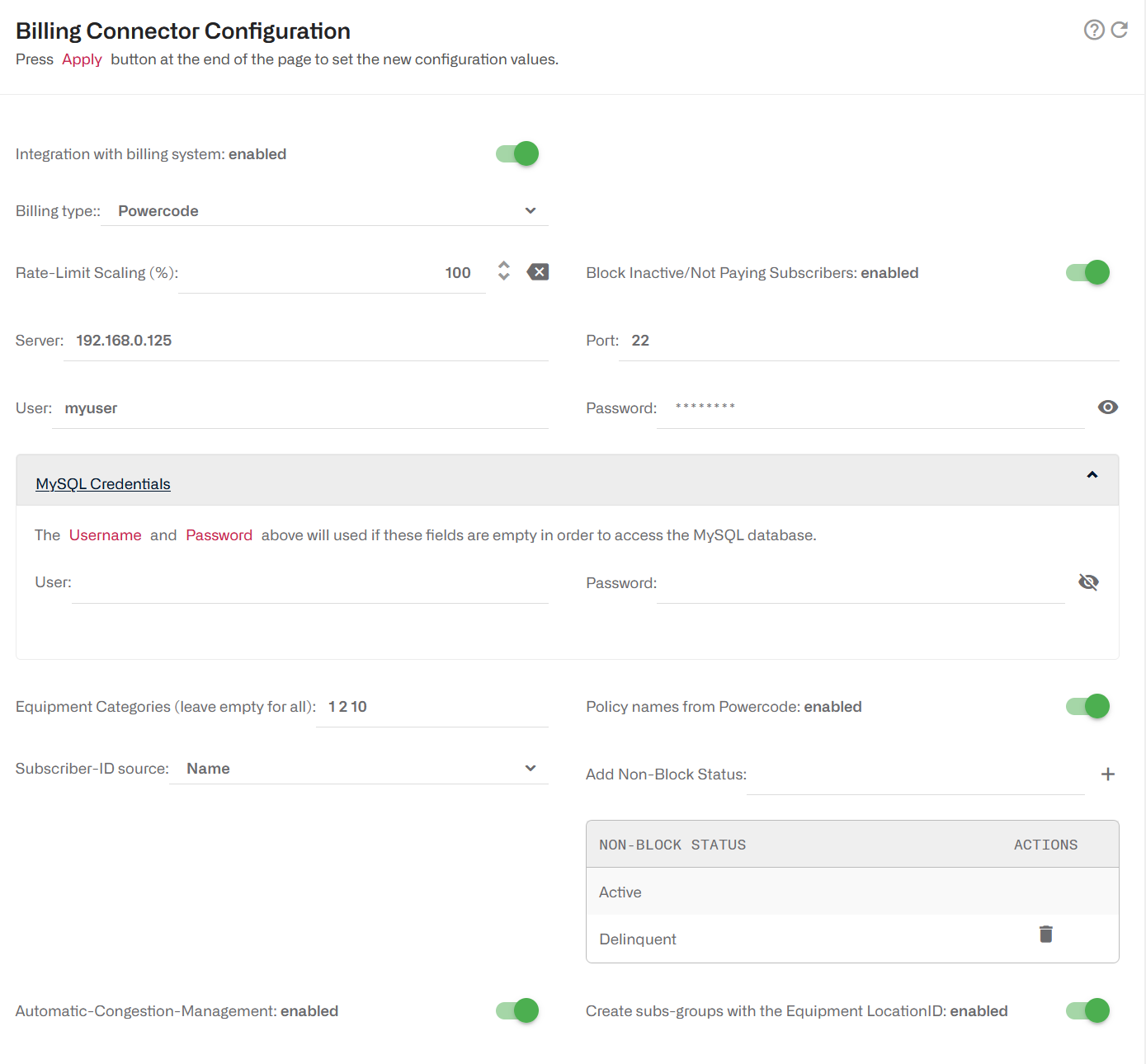

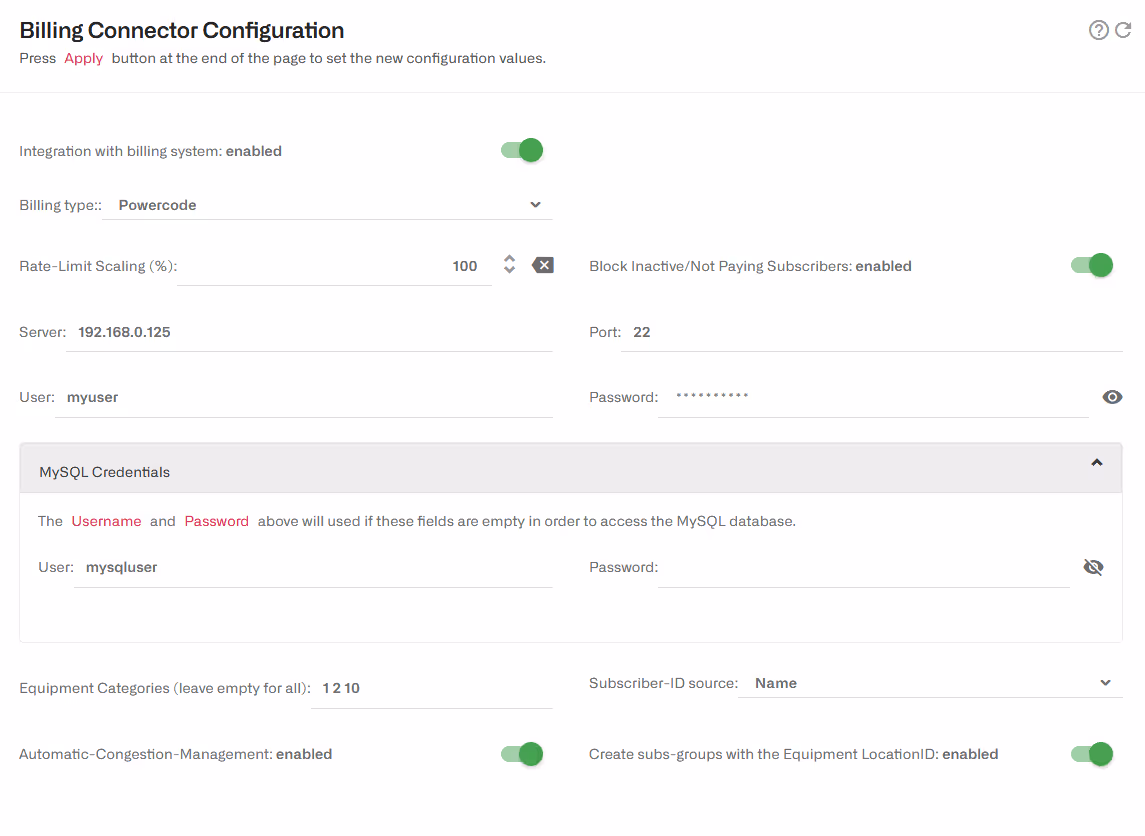

To activate Powercode in the BQN GUI, go to Configuration->RADIUS/REST/Billing->Billing Systems, select Powercode and enable the switch.

Provide the Powercode system IP address or server name and its SSH port number (22 by default).

The BQN server needs SSH access to the Powercode server using a Unix User/Password.

In the Powercode system, we shall require a MySQL user and password. If the MySQL user/password is different to the Unix user/password, that should be specified in MySQL Credentials in the BQN GUI. The MySQL user must have read access to the following tables of the Powercode MySQL database:

• Services
• InternetInfo
• Equipment
• Customer
• CustomerServices
• AddressRange
• DeviceCategory

The BQN retrieves CPE equipment of a certain category (all categories by default).  Categories are specified as a list of numbers separated by spaces.

Powercode customers in a status other than “Active” will be blocked (they are regarded as lacking a valid subscription). You can change this behaviour to non-blocking disabling the switch Block Inactive/Not Paying Subscribers.

Policy rates are taken from customer service Internet Info (MaxIn, MaxOut, BurstIn, BurstOut and BurstBucktTime).

With subscriber group information enabled, and if the information is available in Powercode database, the LocationID of the equipment of the customer CPE will be used as a subscriber group, prefixed with “L1-“.

‍

REST-API Powercode

‍

Powercode billing restricts REST API to three requests per second. For that reason, the preferred integration is using the MySQL access described in the previous section. REST-API can be used when MySQL cannot be used and the number of subscribers is low (one thousand or less).

The BQN retrieves CPE equipment of a certain category (1 by default). For subscribers with that category of equipment, it will retrieve the rate limits of their Internet service (“internetInfo”).

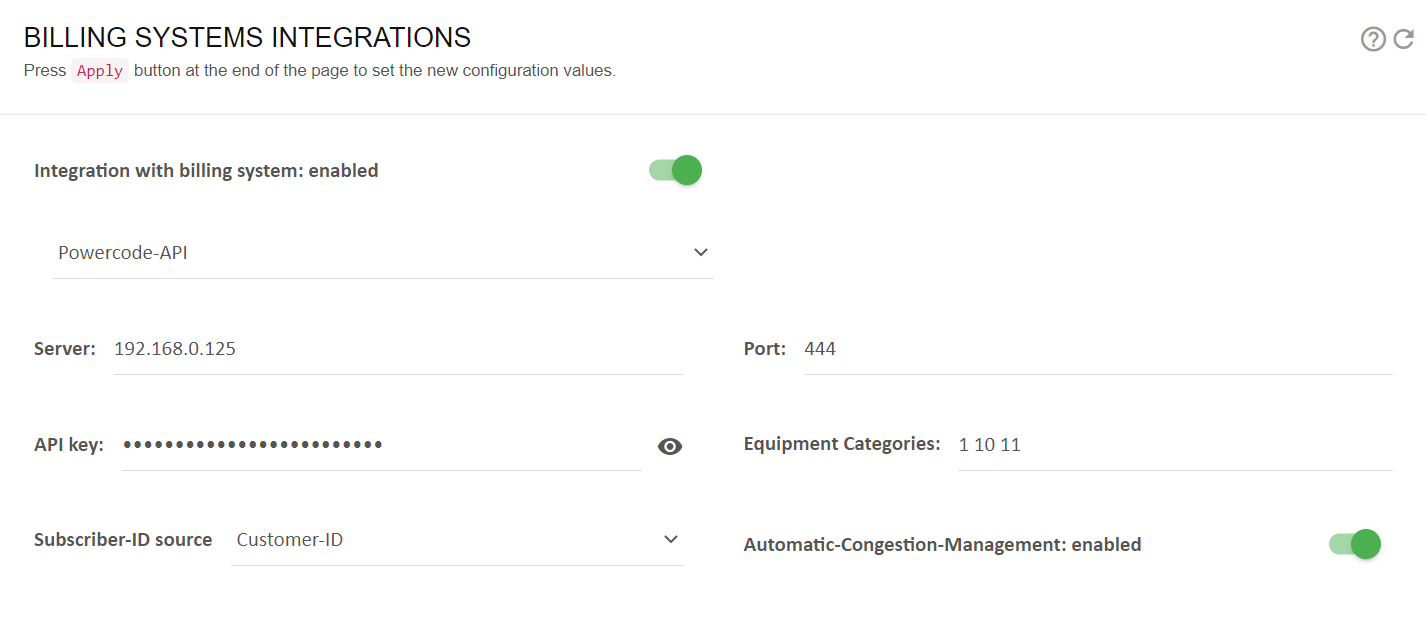

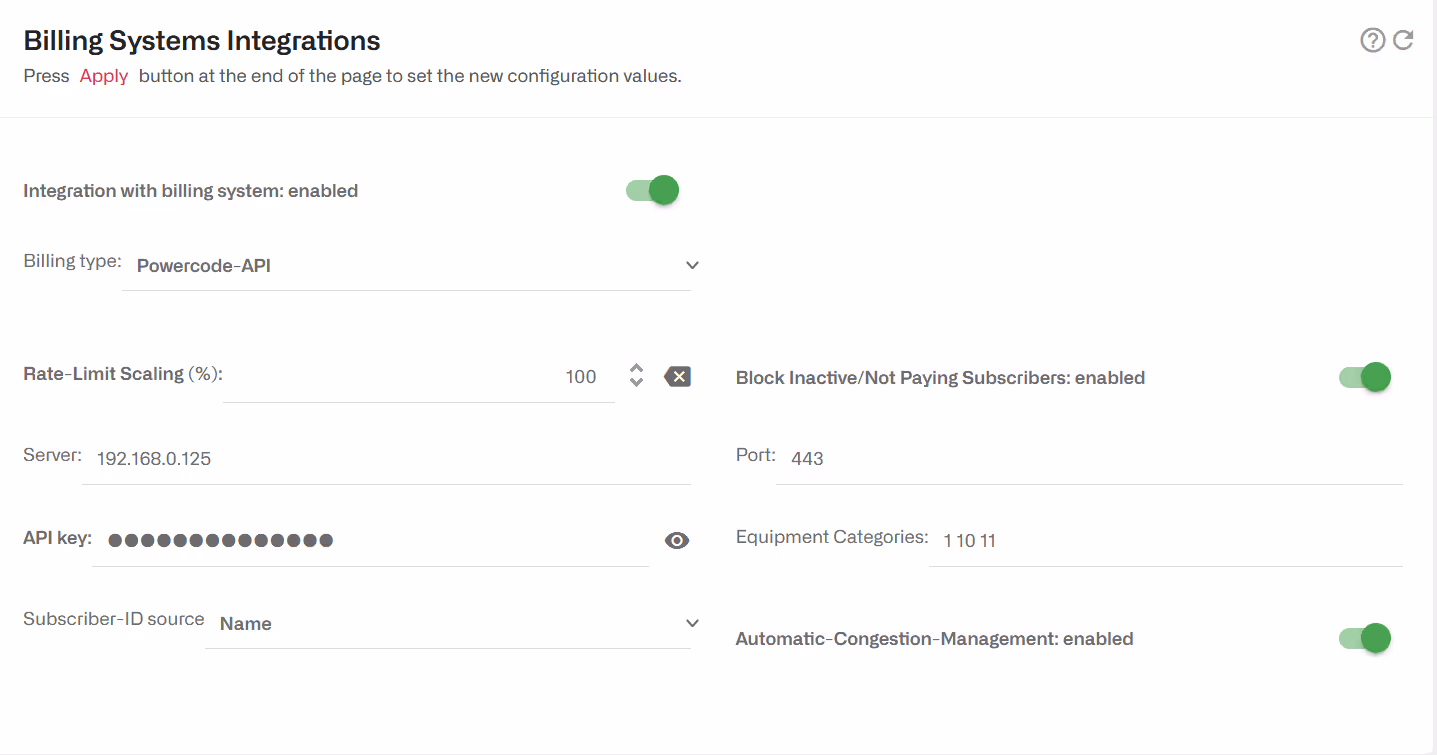

To activate Powercode, go to Configuration->External Subscriber Data->Billing Systems , select Powercode enable the switch.

An API Key will also be needed. The API key must be created in the Powercode system, with allowed access from BQN IP address (the BQN will use its management address for Powercode queries).

Provide also the Powercode system IP address or server name and port number (444 by default).

If the CPE equipment category in the Powercode database is other than 1, change it. More than one category can be specified typing the category numbers separated by spaces (e.g. “10 11 12” for categories 10, 11 and 12).

No retrieval of subscriber group information possible, use the SQL-based option instead.

‍

Sonar

‍

Sonar v2 is supported (the one with GraphQL API).

The BQN retrieves the customer tariffs and the speed limits to apply.

To activate the Sonar integration, go to Configuration->RADIUS/REST/Billing ->Billing Systems in the BQN GUI, select Sonar and enable the switch.

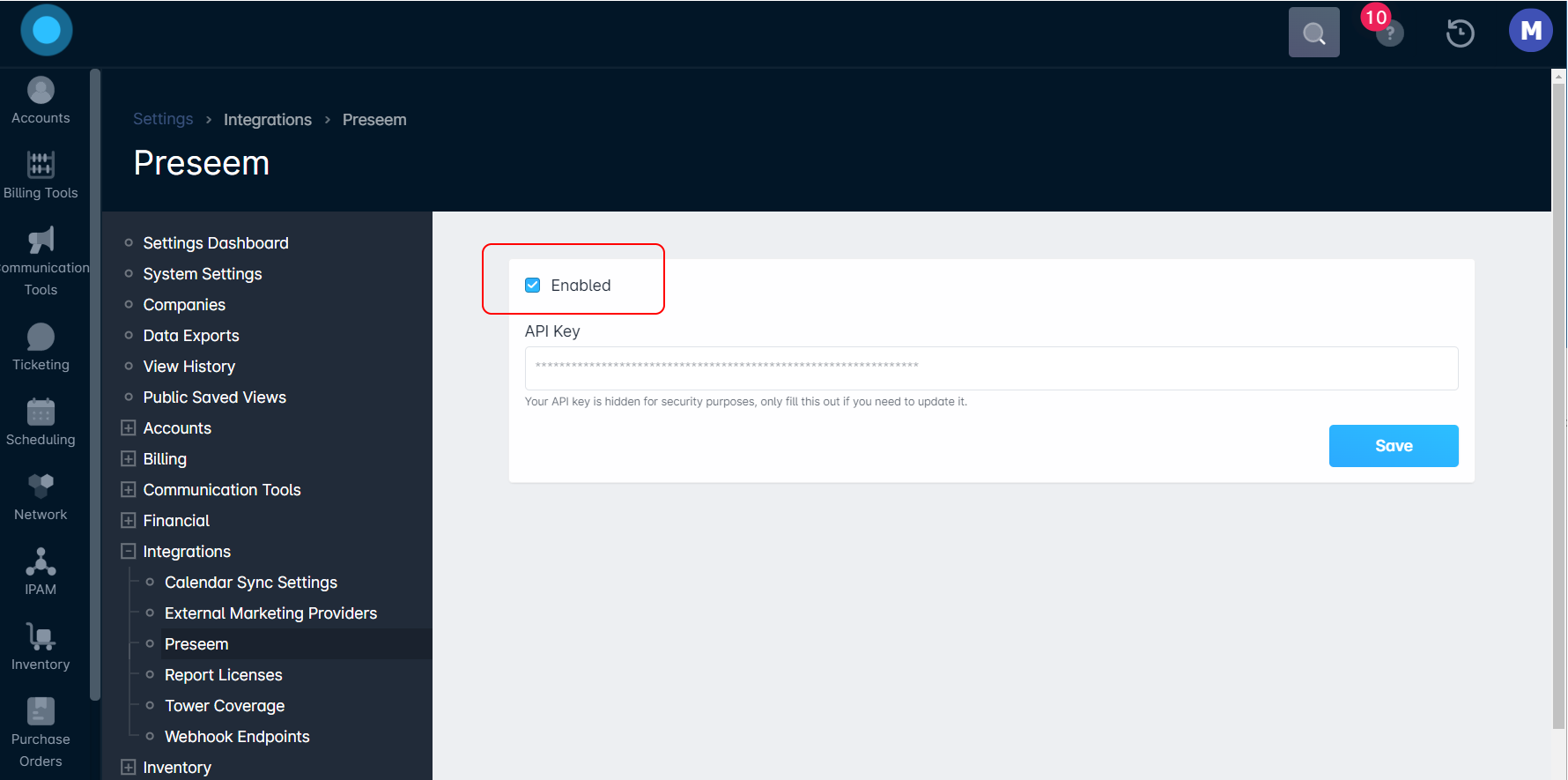

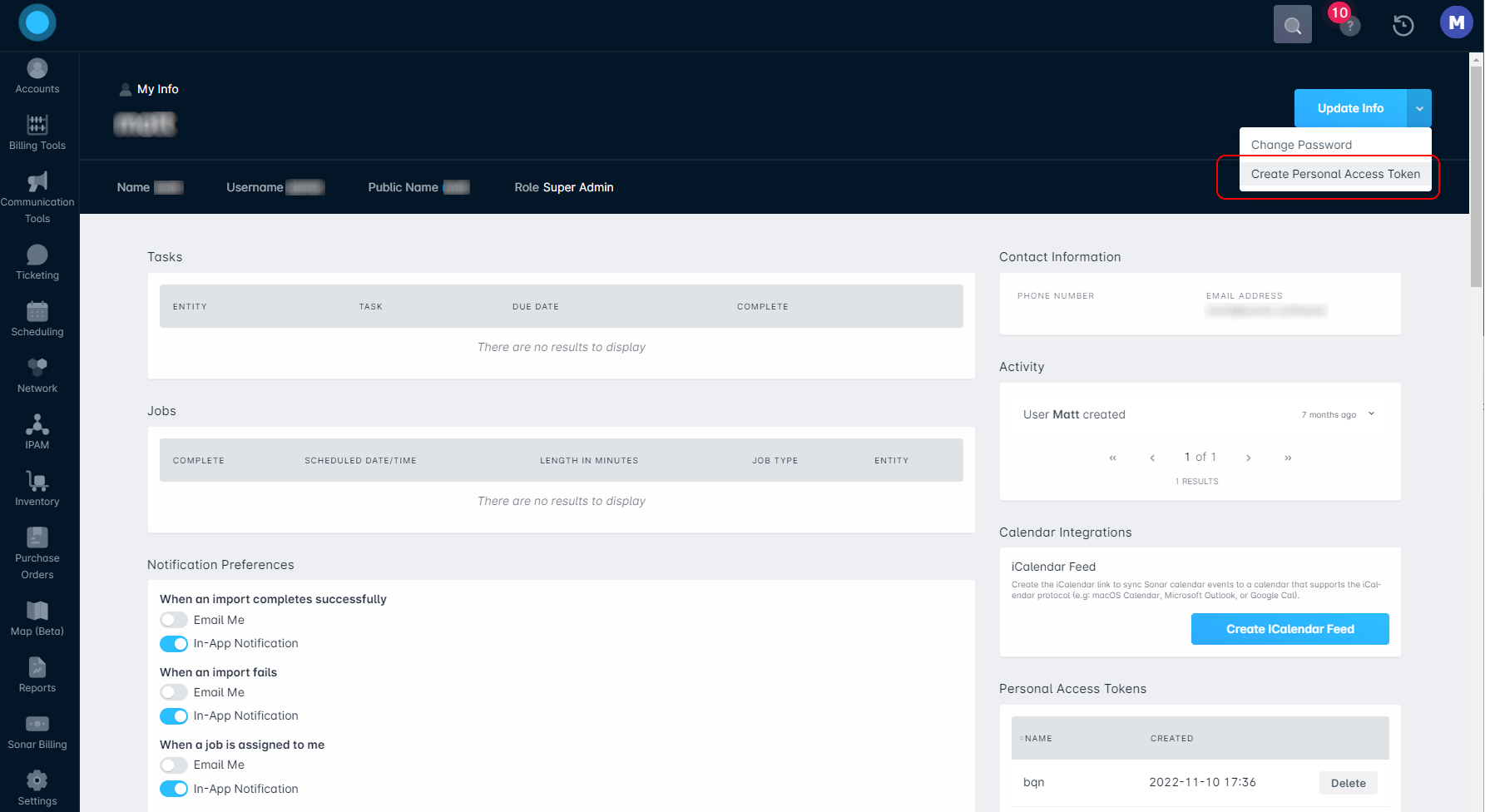

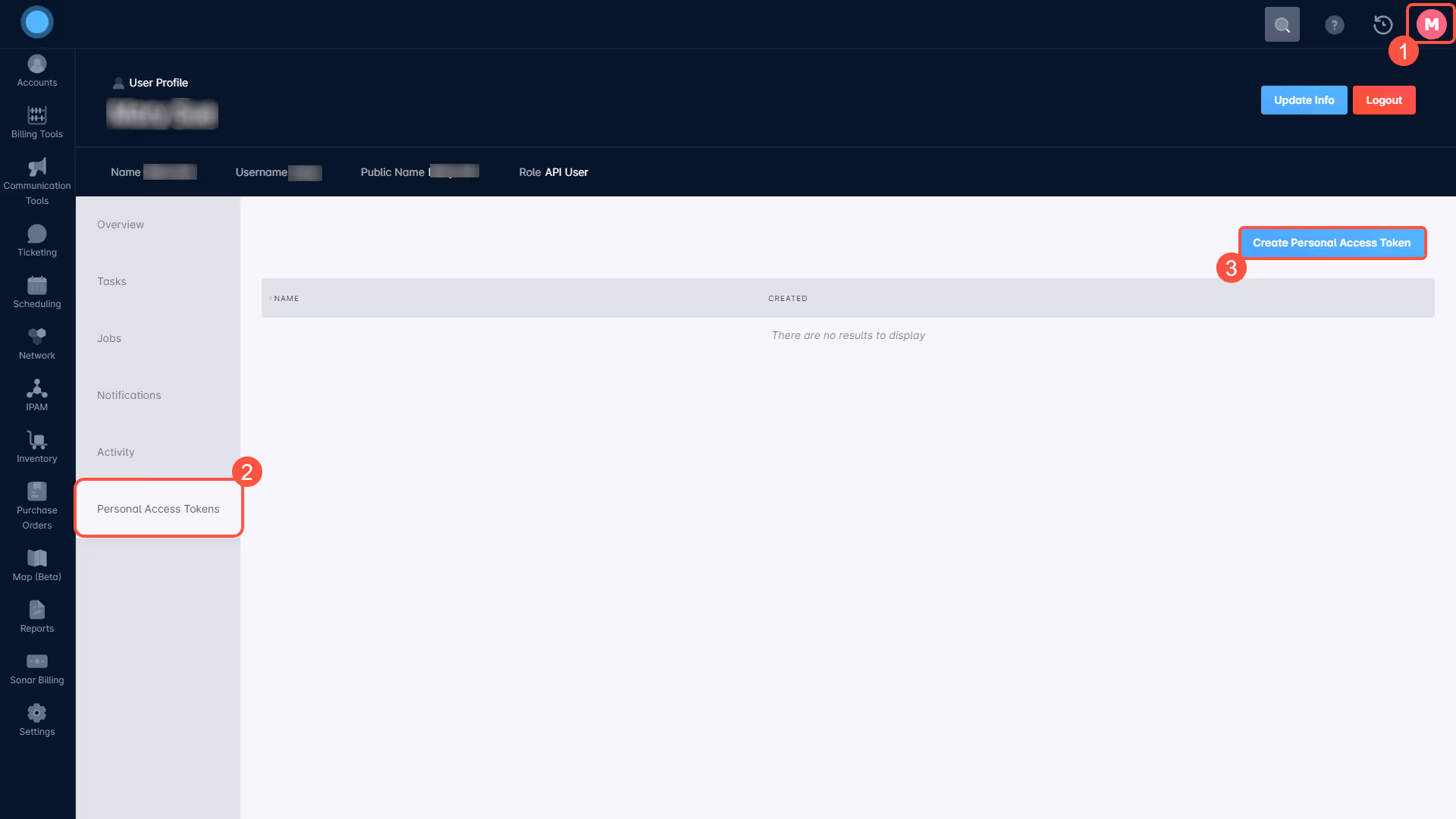

An API key will be needed. They must be created in the Sonar system. See Sonar documentation for details here.

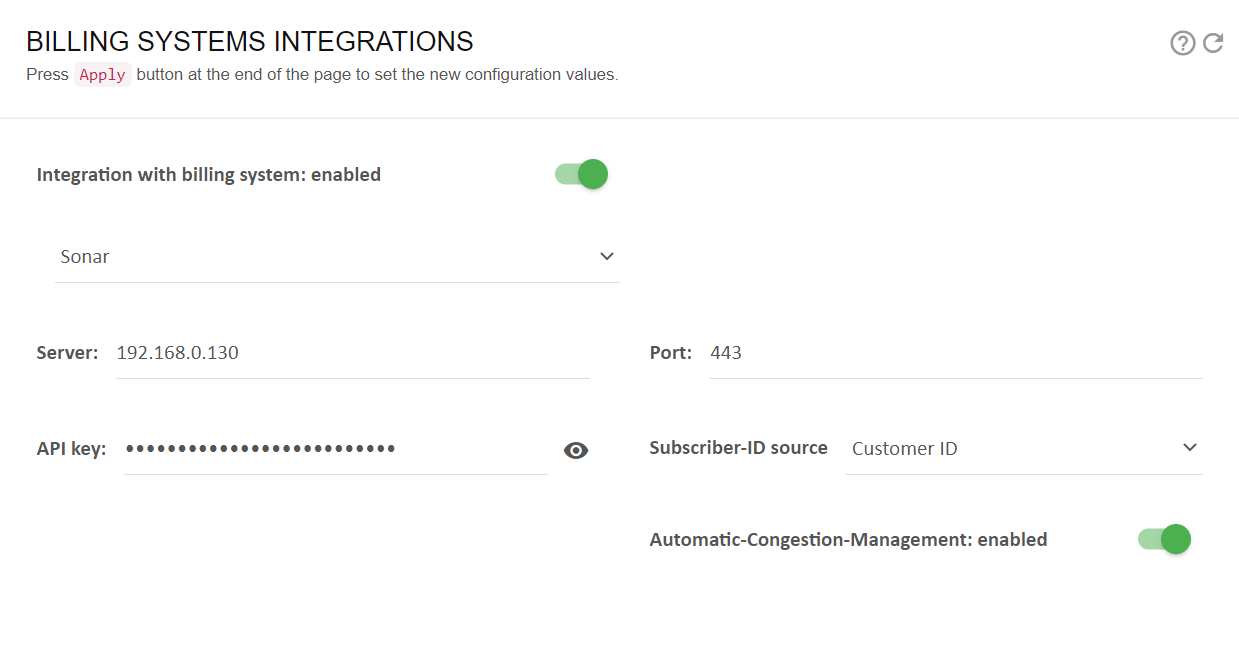

Finally, in the BQN GUI, configure the Sonar system IP address or server name and port number (443 by default) in Configuration->RADIUS/REST/Billing ->Billing Systems, with Sonar selected and enabled.

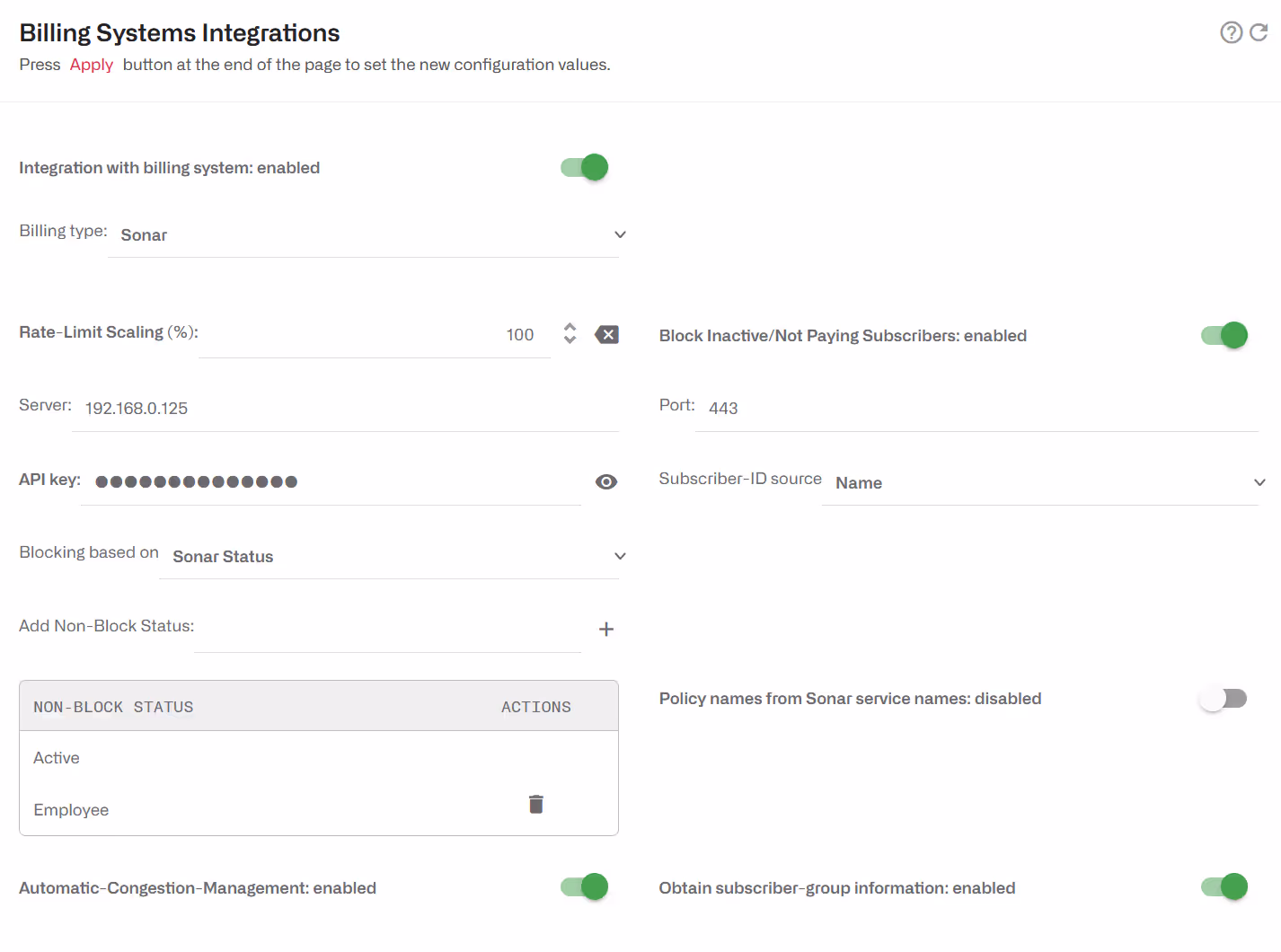

By default, Sonar customers with account_status->name field with a value other than “Active” will be blocked (they are regarded as lacking a valid subscription). You can add more status in addition to “Active”, so they are not blocked either (see previous example, where status Employee has been added). You can change BQN behavior to non-blocking regarding of account status by disabling the switch Block Inactive/Not Paying Subscribers.

The following fields in Sonar billing can be used as source of the subscriber ID:

• Customer-ID (account ID field in Sonar).
• Name (account name in Sonar).

The speed limits are taken from data service detail fields:

• download_speed_kilobits_per_second
• upload_speed_kilobits_per_second

‍

By default, the name of the rate policy is created internally by the BQN. Alternatively, if it is enabled the switch Policy names from Sonar service names, the policies will be named using Sonar service name plus the service Id appended to it,  in order to have a unique identifier (Sonar service names alone are not guaranteed to be unique).

With subscriber group information enabled, and if the information is available in Sonar database, a subscriber group, prefixed with “L1-“, will be created based on the description of the parent inventory item of the subscriber’s inventory item.

Dual stack is supported: for each account with both an IPv4 and IPv6 address, a joint rate policy will be applied. This is implemented creating a subscriber group with those addresses as members. To enable dualstack, select a group naming in the IPv6 dual-stack group name field. The groups will have a “DS-“ prefix. The creation of dual stack groups is disabled by default (empty IPv6 dual-stack group name). If, in addition to the subscriber router address, the Subscriber Module IP address is also listed in the account IP assignment, it will be added also to the group.

Splynx

‍

The BQN retrieves the customer tariffs, the speed limits to apply and the burst rates, together with burst thresholds and burst duration.

To activate Splynx in the BQN GUI, go to Configuration->RADIUS/REST/Billing->Billing Systems, select Splynx and enable the switch.

An API key and secret will be needed. They must be created in the Splynx system with the following settings:

• Enable basic authorization for this key.
• Leave empty Allowed list for IPs or include the BQN IP address. The BQN will use its management address for Splynx queries but bear in mind that if the BQN reaches Splynx over the Internet, Splynx will see a public IP address and this is the one that will need authorization by the Splynx system.
• Add view permissions for database items Tariff plans->Internet, Customers->Customer, Customers->Customers online and Networking->Network Sites.

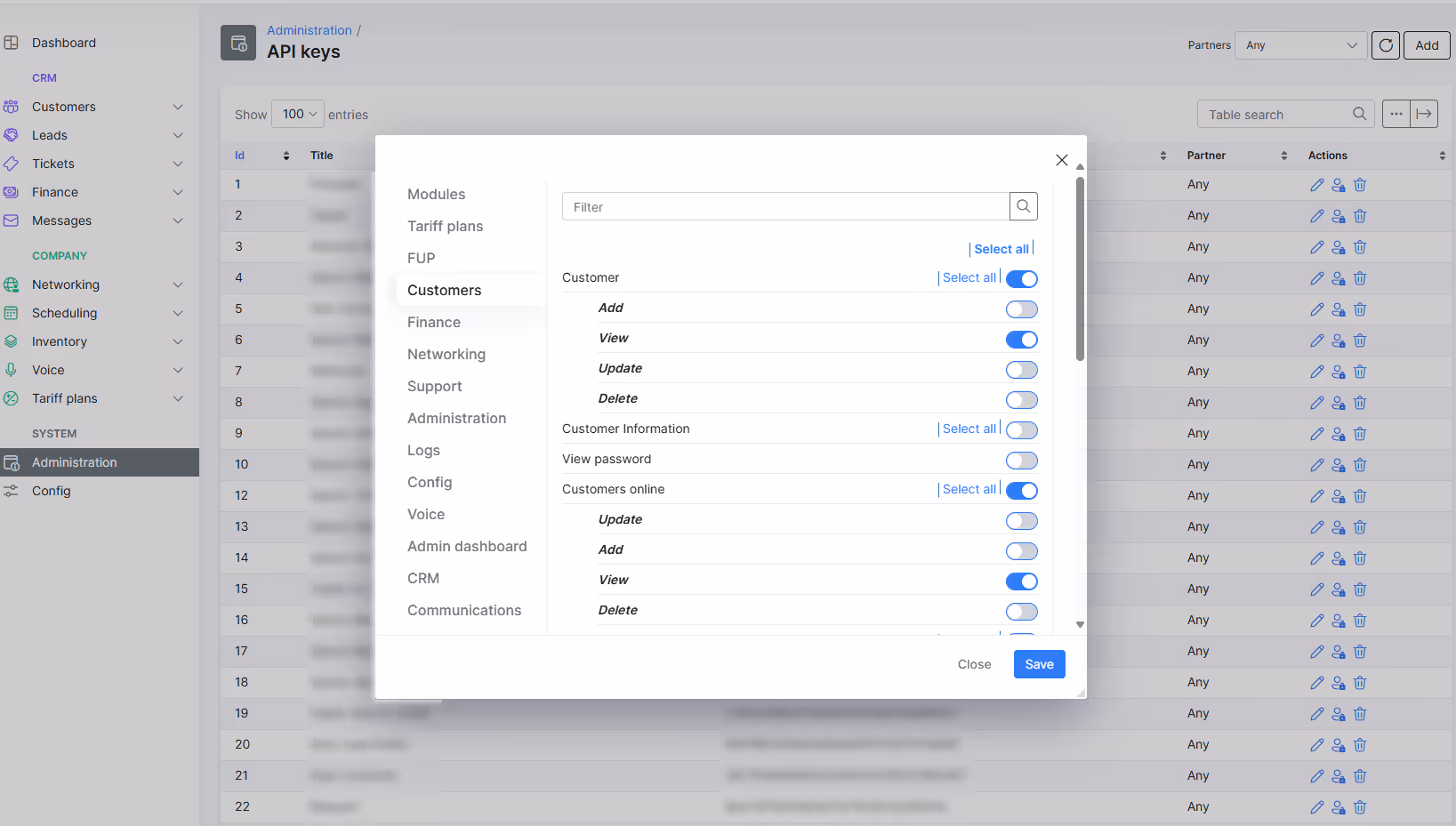

The following screenshots show the API KEY and the access permits:

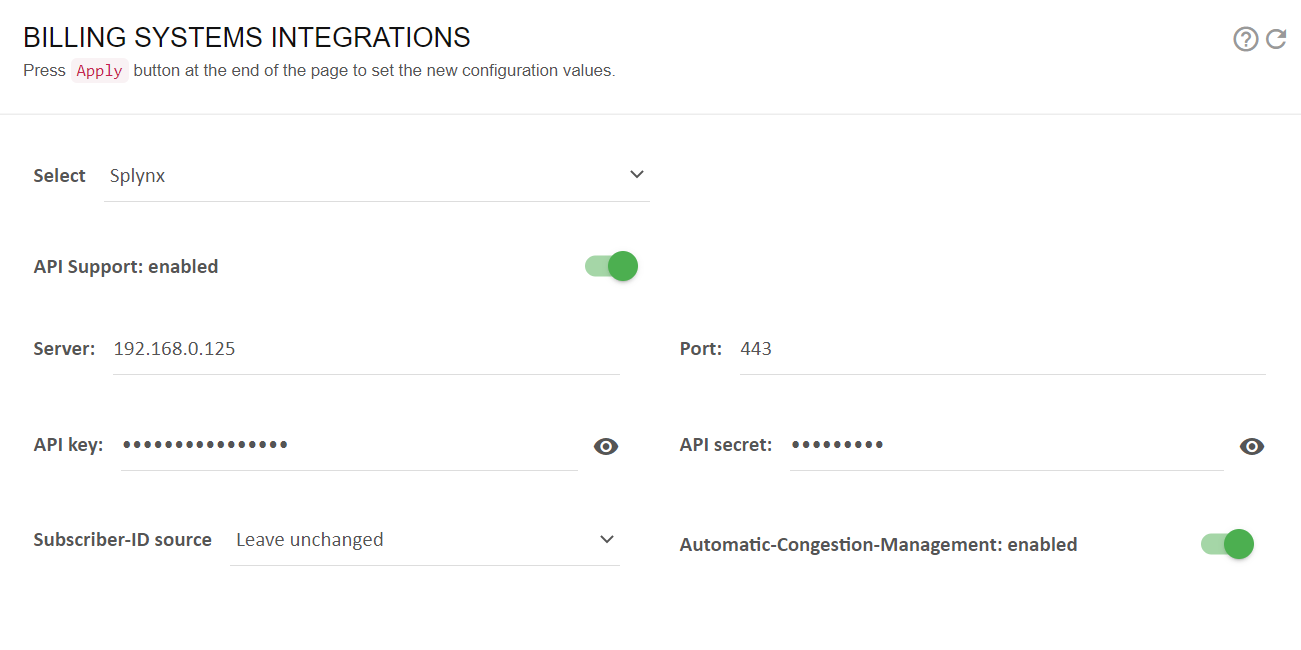

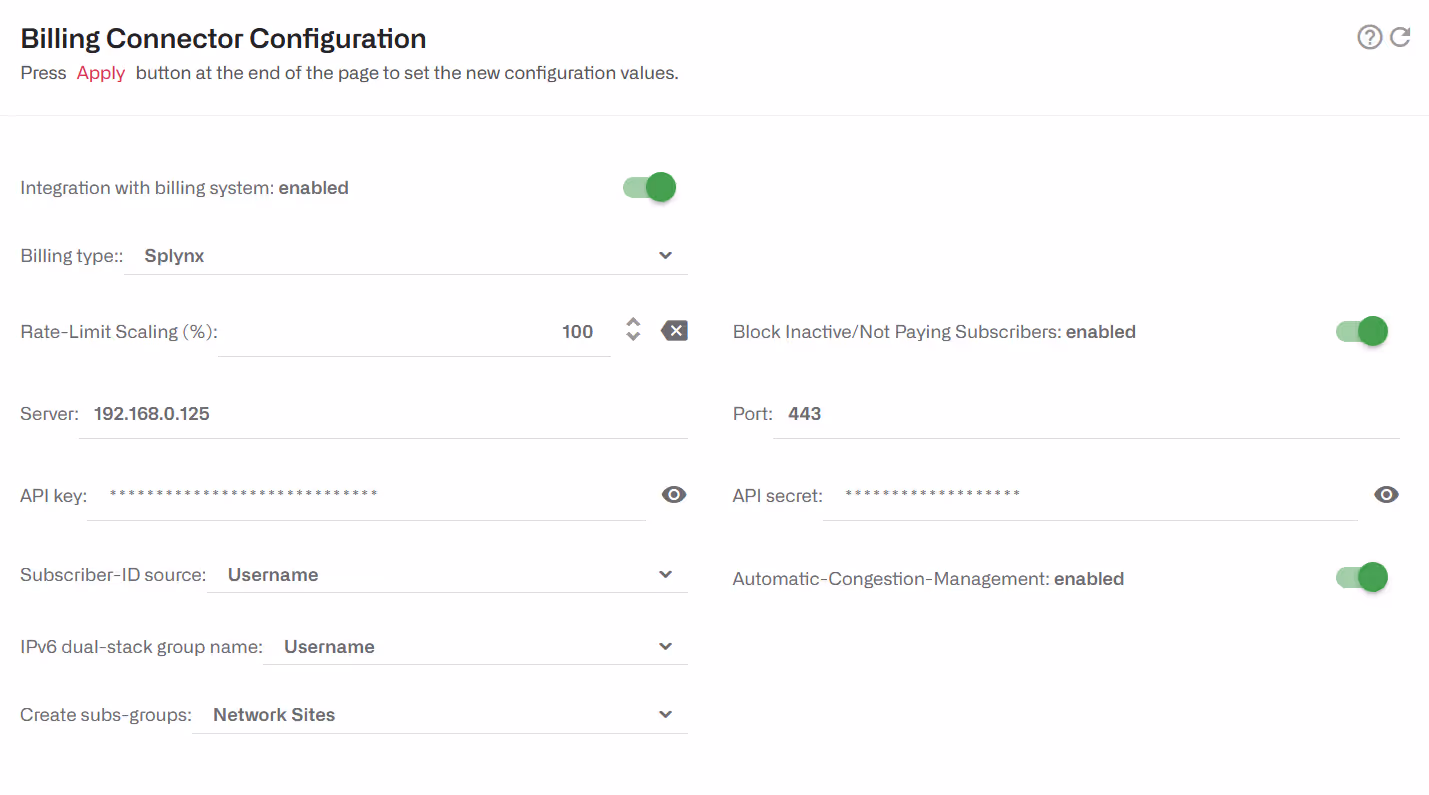

In the BQN GUI, configure also the Splynx system IP address or server name and port number (443 by default).

Splynx customers with “1” in their blocked field, will be blocked (they are regarded as lacking a valid subscription). You can change this behaviour to non-blocking disabling the switch Block Inactive/Not Paying Subscribers.

The following fields in Splynx billing can be used as source of the subscriber ID:

• customer_id
• login
• username_real

The rate policy speed limits are taken from the Internet tariff associate to the online customer:

• seed_download
• speed_upload

Dual stack is supported: for each account with both an IPv4 and IPv6 address, a joint rate policy will be applied. This is implemented creating a subscriber group with those addresses as members. To enable dual stack, select a group naming in the IPv6 dual-stack group name field. The groups will have a “DS-“ prefix. The creation of dual stack groups is disabled by default (empty IPv6 dual-stack group name).

The BQN can create subscriber groups based on Splynx location information. Location information may be:

• Groups based on Customer Network Site. Networksites must be defined in Splynx Networking->Network Sites andassociated with each Customer using the Location field in CustomerMain Information.
• Groups based on Customer Labels. Labels arecreated in Config->System->Labels and associated with each Customerusing the Labels field in Customer Additional Information.

Generation of these groups is disabled by default, to enable it, select the one option in Create subs-groups (Network sites, Labels or both).

‍

UISP

‍

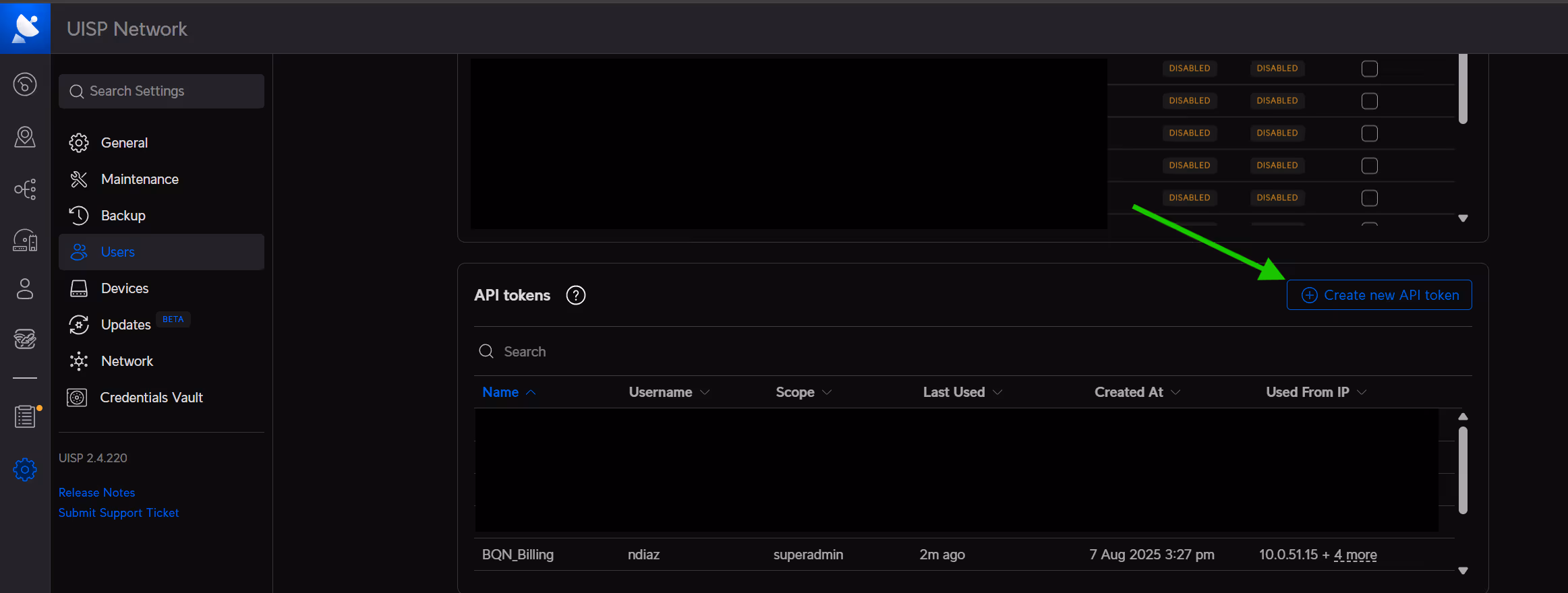

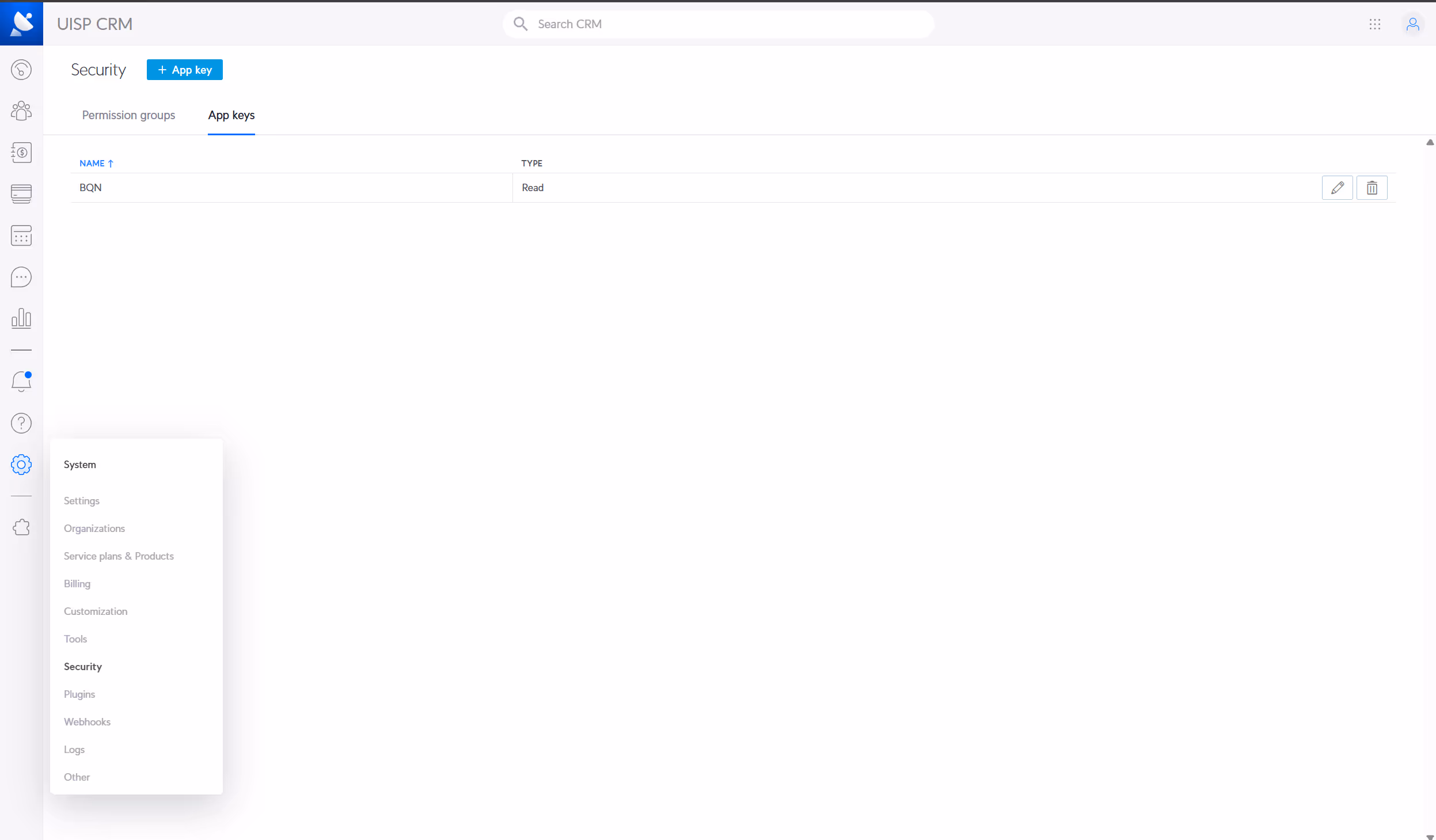

First, read access must be granted with a common API KEY to both the UCRM and UNMS parts of the UISP system.

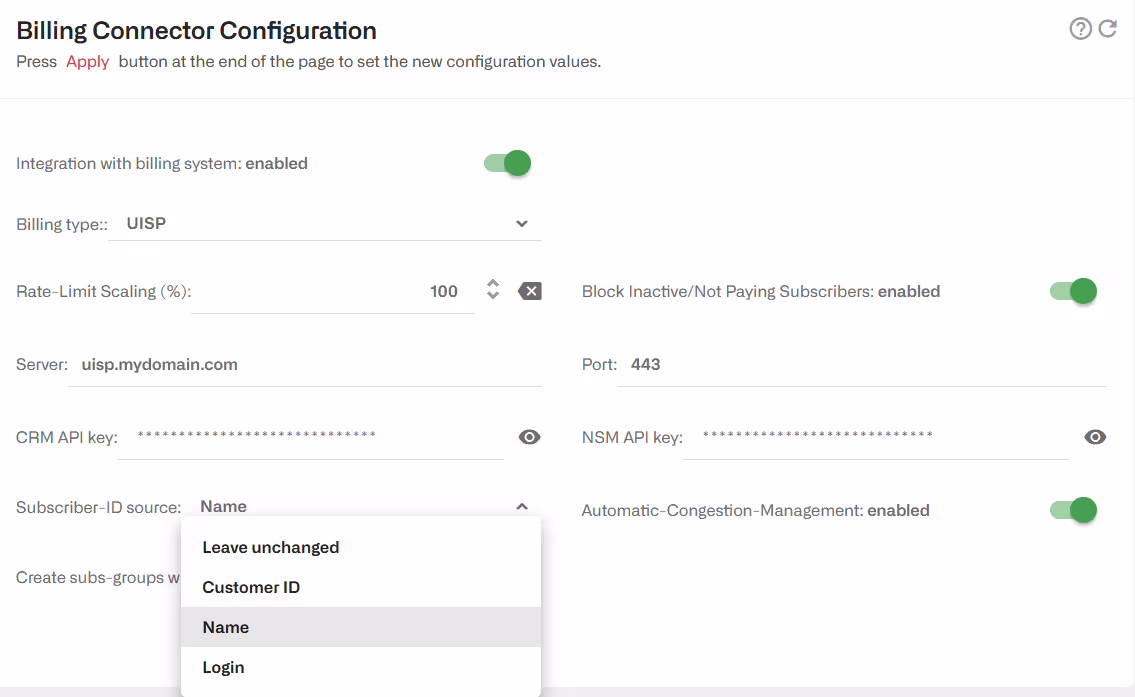

To activate UISP, go to Configuration->RADIUS/REST/Billing->Billing Systems, select UISP and enable the switch.

Specify the server name or IP address in Server field and the port number (443 by default).

The rate policies will be retrieved from UCRM service-plans whose servicePlanType is "Internet".

Subscribers are obtained from UCRM clients.

Subscriber IDs can have three sources, selectable in SubscriberID source:

• Customer ID: from client “id” field.
• Name: form client "firstName" and"lastName" (and if both null ,"companyName").
• Login: from client username.

A subscriber is associated with a rate policy through client services. Services are associated with IP addresses through the devices in the UNMS part of the UISP system.

A service with a status other than “Active” or “Suspended” will have the traffic of its associated IP addresses blocked, unless Block Inactive/Not paying Subscribers is disabled.

Subscriber groups are extracted as follows:

• Devices with an “apDevice” field are groupedunder that AP (subscriber group type will be access-point). This will typicallywork for Ubiquity access points.
• Devices with a site parent will be group underthat site (subscriber group type will be tower).

IPv6 is not supported by UISP at the moment.

 NOTE: this integration replaces the previous open source python scripts.

‍

‍

‍

‍

‍

‍

‍

‍

‍

‍

‍

‍

‍

Visp.net

‍

The BQN retrieves the customer tariff and get from it the speed limits to apply and the burst rates, thresholds andduration.

To activate Visp, go to Configuration->RADIUS/REST/Billing ->Billing Systems, select Visp and enable the switch.

A valid client id and secret and user name and password  must be provided to the BQN in order to request temporal API tokens. A client id is unique per Visp installation. A user is any of the valid user accounts in that client to access the system.

The provided IP address or server name will be used, along with the port (443 by default), to requests API tokens (https://<server>:<port>/token) and also to send API queries (https://<server>:<port>/graphql).

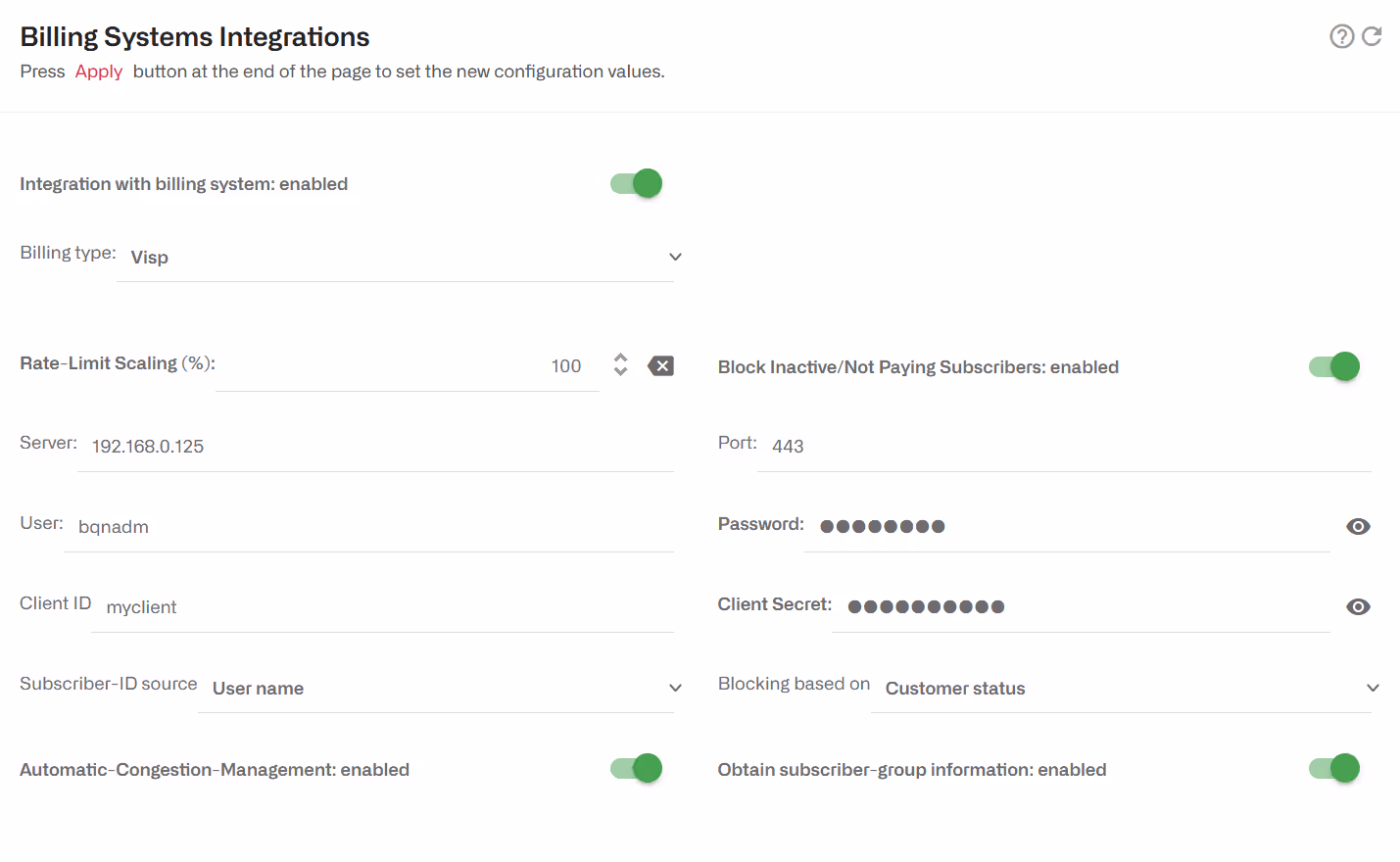

The following screen shows an example of Visp configuration:

Visp customers with a package status and service instance status other than ACTIVE, will be blocked. You can change this behaviour to non-blocking disabling the switch Block Inactive/Not PayingSubscribers.

With the switch Block Inactive/Not Paying Subscribers enabled, the BQN will block subscribers based on two possible criteria:

• Status of service instances and packages (the default). If neither of them are in “ACTIVE” state, the subscriber will be blocked.
• Status of the subscriber account. If this option is chosen, subscribers in states Suspended, Hibernated and Inactive will be blocked (status codes  8, 9 and 10, respectively).

The following fields in Visp billing can be used as source of the subscriber ID:

• Customer-ID
• First +Last name
• Username

Policy rates are taken from customer’s service instance  up_speed and down_speed. The burst rates up_burst and down_burst are also obtained.

With subscriber group information enabled, the access point identifier associated to the CPE of the subscriber, with an  “L1-“ prefix, will be the name of the subscriber group,  if the information is available in the Visp database.

‍

WISPControl

‍

WISPControl uses RADIUS.  See RADIUS Interface chapter.

‍

Wisphub

‍

Wisphub has developed an integration with BQN using BQN REST API. See Wisphub product documentation here.

‍

Wispro

‍

The BQN retrieves clients, contracts and plans to get the speed limits to apply.

To activate Visp, go to Configuration->RADIUS/REST/Billing->Billing Systems, select Wispro and enable the switch.

A valid API key  mustbe provided. The API key must be generated in the Wispro system. See instructions here.

The provided IP address or server name will be used, along with the port (443 by default), to send API queries to Wispro (https://<server>:<port>/api/v1).

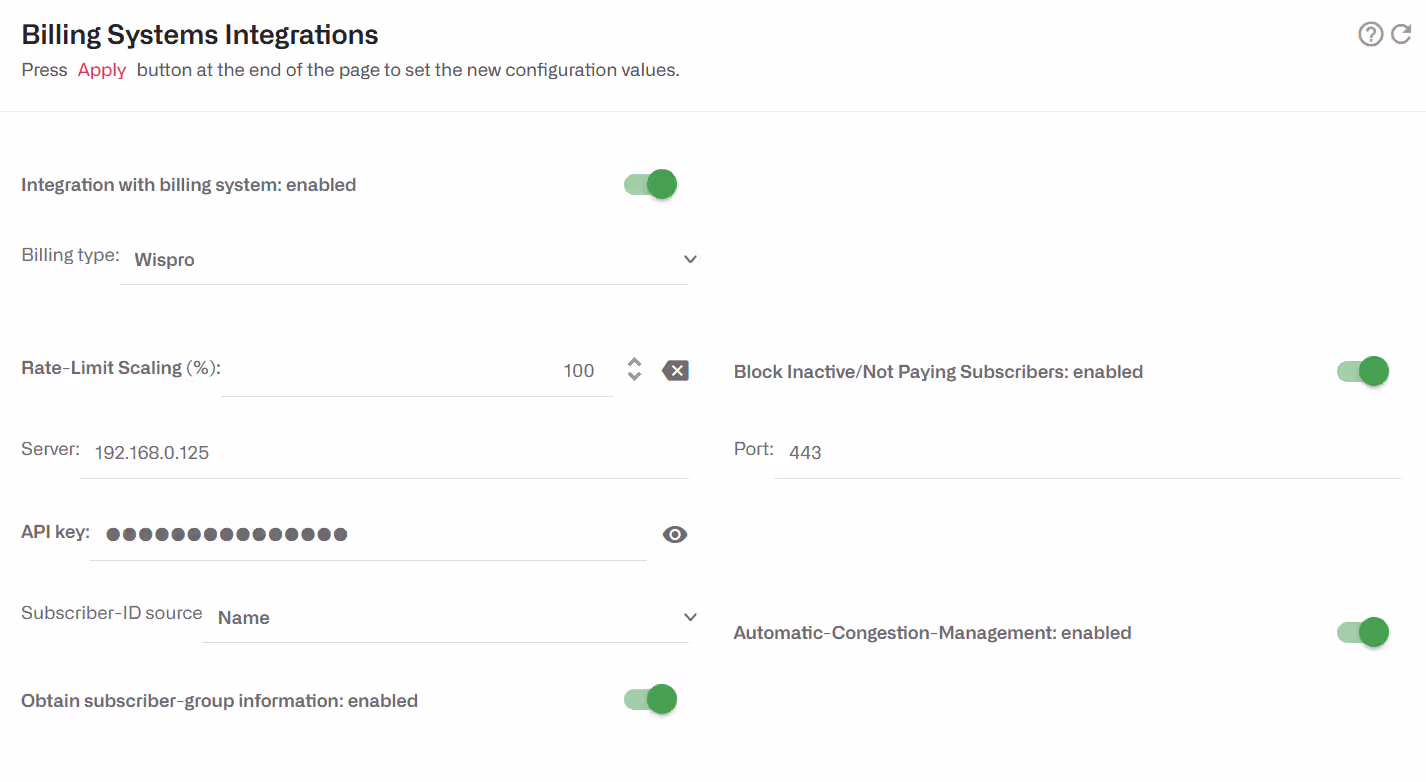

The following screen shows an example of Wispro configuration:

Only Wispro clients with contracts in disabled state will be blocked. You can change this behaviour to non-blocking disabling the switch Block Inactive/Not Paying Subscribers.

The following fields in Wispro billing can be used as sourceof the subscriber ID:

• SubscriberID (“public_id” in Wispro client).
• Name.
• MAC address.
• Login (“email” field in Wispro client).

Policy rates are taken from the plan of the client contract. The plan ceil_down_kbps and ceil_up_kbps parameters are used as speed limits.

If a Wispro client has more than one contract, each IP address will be assigned the speed limits of its contract. If an IP address is repeated in two client contracts (this is an inconsistency in the billing database that should not happen), the limits of the contact obtained the last will be selected.

With subscriber group information enabled, node names will be used as subscriber groups, i.e., a subscriber will be associated to a subscriber group after the node name of the contract, if that information is available in Wispro database.

‍

General Billing Considerations

‍

Subscriber ID source

‍

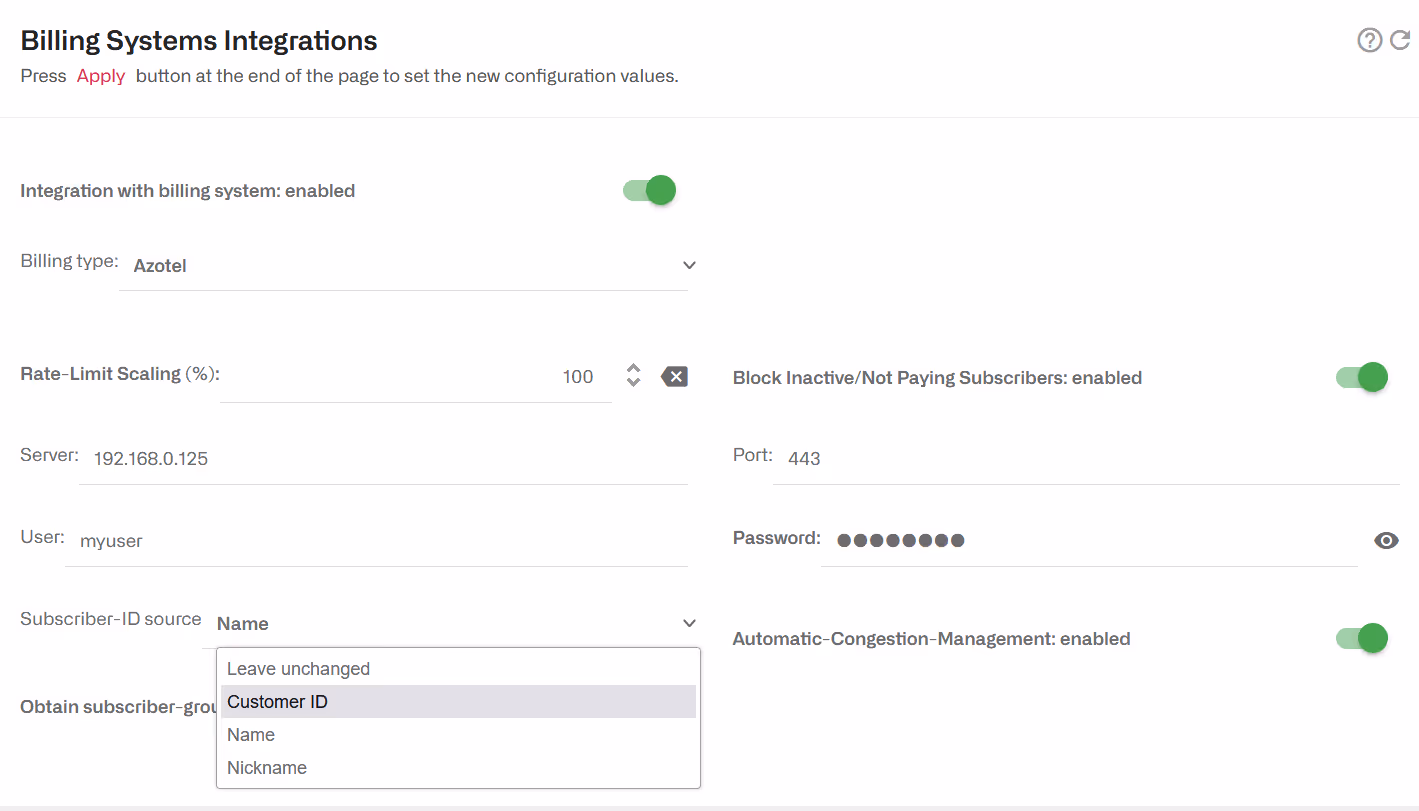

The billing system can be the source of BQN subscriber IDs. The choices of ID sources depend on the billing system (see each billing section for details).

For billing systems integrated using REST API, the billing system is in full control of the subscriber ID, that can be explicity defined when creating or editing the subscriber.

‍

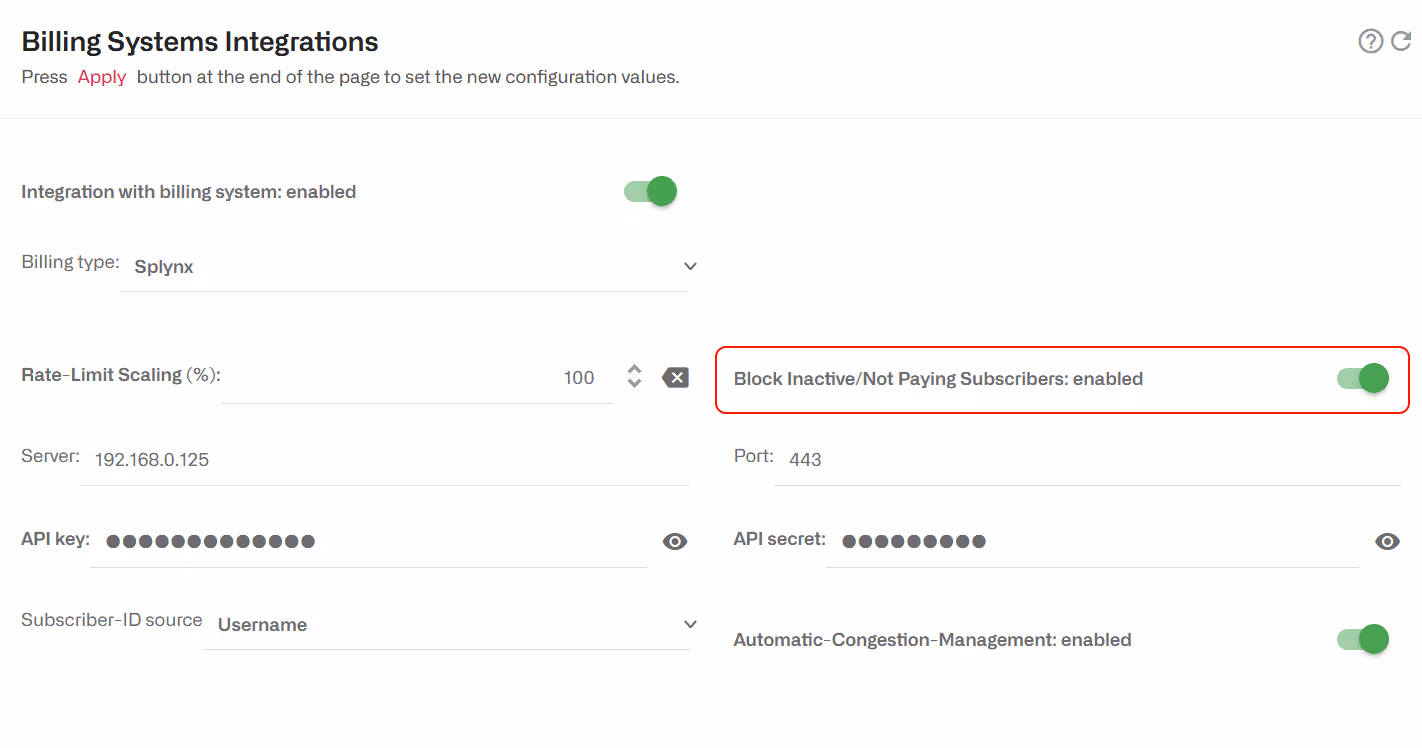

Block Inactive / Not Paying Subscribers

‍

By default, BQN will block non-paying subscribers. What is a non-paying subscriber depends on the billing system (see each specific billing section for details). To prevent BQN from blocking non-paying subscribers, disable the switch Block Inactive/Not Paying Subscribers.

For billing systems integrated using REST API, the billing system is in full control of the rate limit definition and it can block a subscriber by assigning it to a policy with 0 rate limit speed.

‍

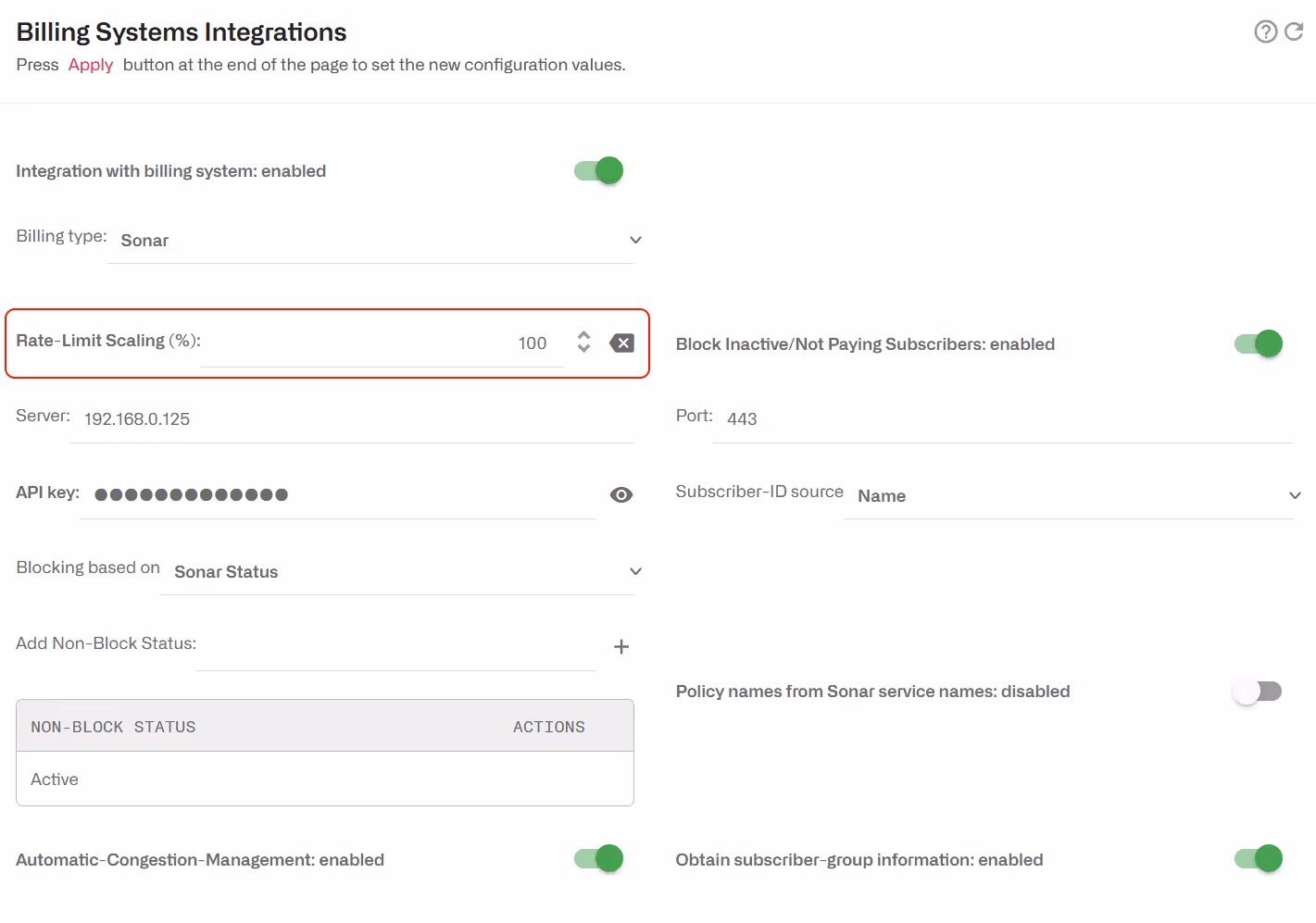

Rate Scaling Factor

By default, the BQN will apply the rate limits as specified by the billing system. It is possible to apply a scaling factor to those limits using the field Rate-Limit Scaling.

To enforce a speed limit lower than the one in the billing, use a factor less than 100%. For example, a limit in the billing of 200 Mbps with a factor of 90% will be 180 Mbps.

To enforce a speed higher than in the billing, use a factor bigger 100 % and up to 200% (maximum factor possible). For example, a rate of 200 Mbps in the billing with a factor of 150% will be 300 Mbps.

For billing systems integrated using REST API, the billing system is in full control of the rate limit definition and can decide which factor if any apply to the limits sent to the BQN.
